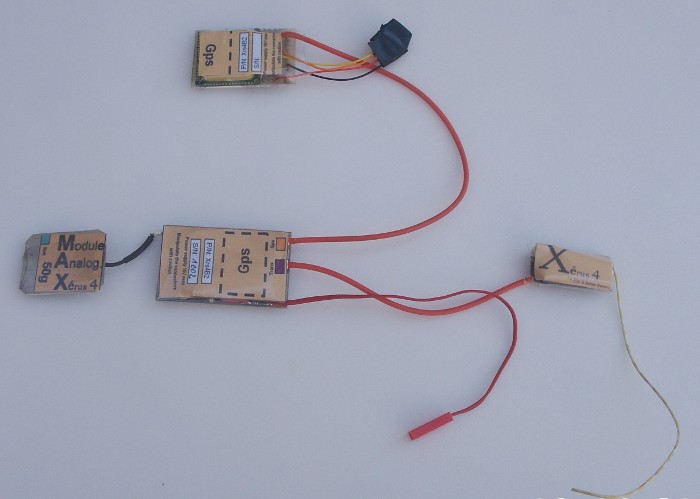

Max transducer line - (stands for "Module Analogique Xérus")

Xerus setup

A broad line of transducer for difficult measurements

The basement of an efficient measurement system is the transducer.





Max1401 - Angular transducer to measure aerodynamic angles

Angular transducer alone Key parameters:
Very low rotational resistance
Precision better than .5 degree over +/-20°
resolution better than .05 degree with Xerus data management system
diameter 25mm
Analog output
3.3V supply

Read more...

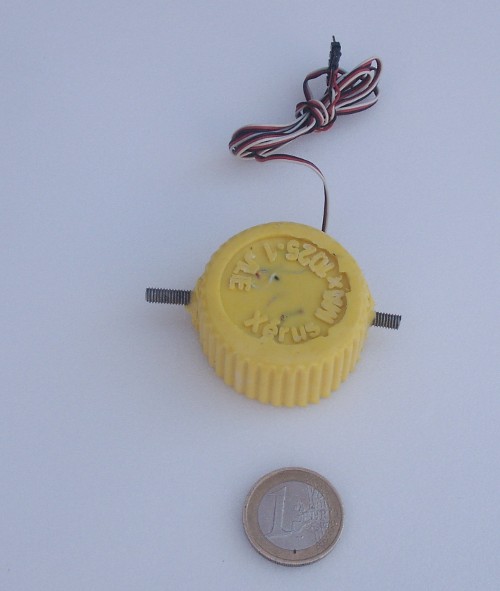

Max1025 - Traction sensor to measure winch up in flight

Force transducer

Key parameters:
- 40 Kg full scale measurement range
- rugged construction
- 3 to 5 V supply
- Mechanichal interface: M4

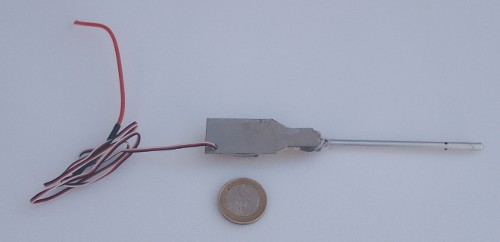

Max1010 - Air speed pitot with sensor

AirspeedsensorKey parameters:

- differential pressure measurement from static and total pressure
- 5 to 100 m/S speed range
- wide angle of attack
- 4mm pitot diameter

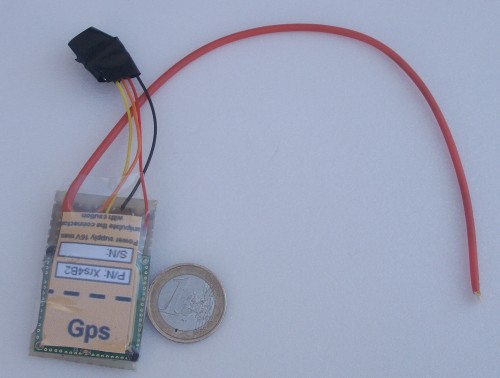

Max2205 - 5 Hz GPS receiver

GPS receiver

Key parameters:

- Latest GPS technology

- combines speed and precision

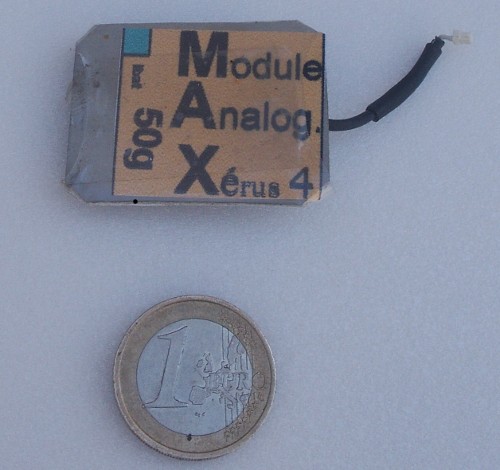

Max1601-50 - High G transducer

Hygh G accelerometerKey parameters:

- 50g full scale measurement

- 2 simultaneaous axis






Max3100 - 433  16 channels emitter


Max1900 - magnetic Rpm transducer




Max2400 - RC system current transducer


Max1800 - power plant current transducer

Contact us and submit your needs if you don't find a transducer that fits your expectations








Related Readings:

Related Readings:

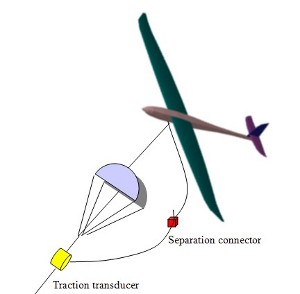

ImageFlight measurement setup with our Max1025 traction sensor to investigate during the zoom on an F3B model  in collaboration with  Patrick Médard

High G zoomIn flight measurement acceleration with our Max1601-50 High G transducer during the zoom on an F3B model  in collaboration with  Patrick Médard. 27.2 G measured during the zoom

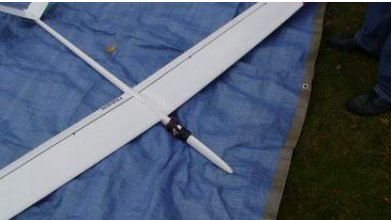

F3B Radical gliderFlight test report  of Airspeed measurement during an F3B zoom in collaboration with  Patrick Médard
